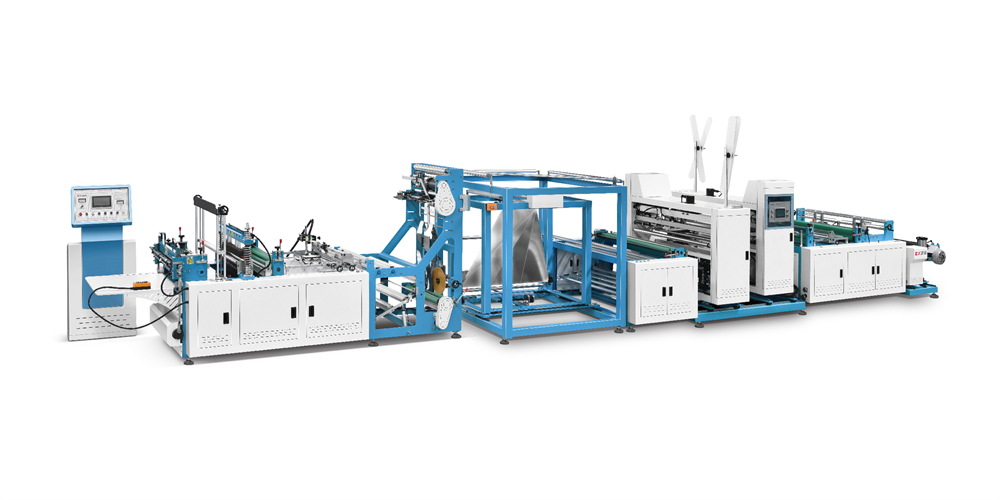

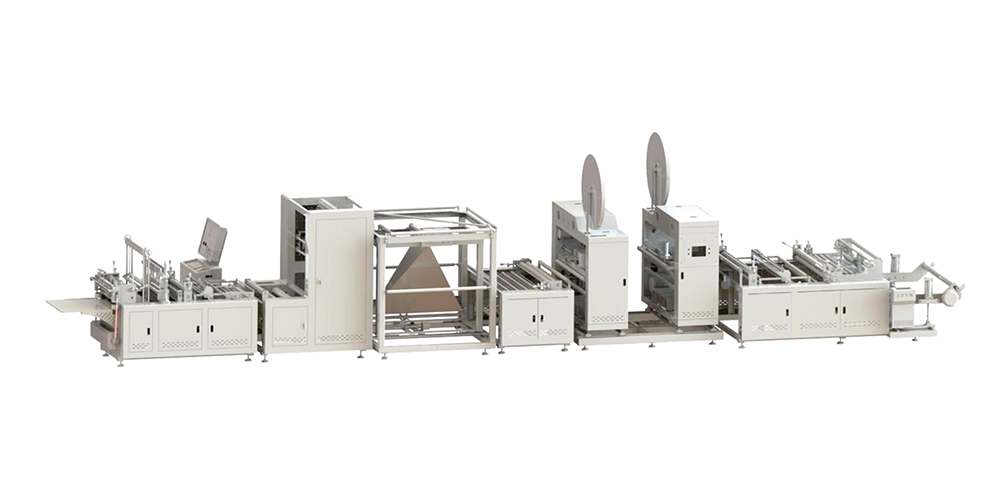

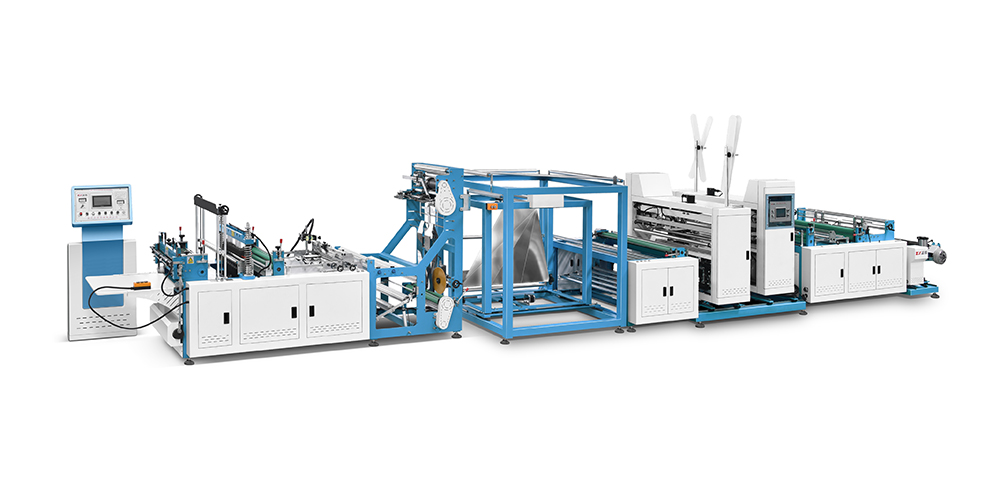

ZXL-G700 Non woven organ bag making machine

ZXL-G700 Non woven organ bag making machine

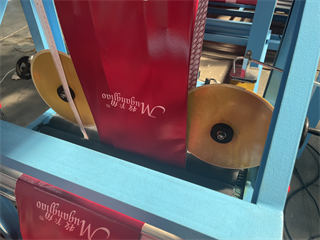

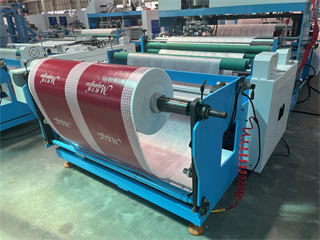

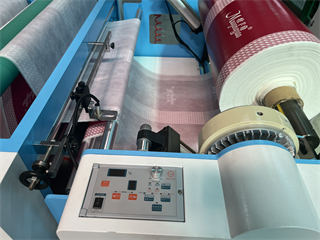

Part 1 Fabric roll Feeding part

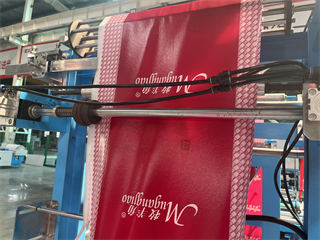

Auto loading material roll(lift by cylinders), Inflatable shaft to fix the fabric roll when machine working. Auto rectifying deviation system(EPC box and web guider). Bag mouth folding and sealing by ultrasonic welding, Photocell eye for printing color mark tracking, Custom-made sealing mould is available.

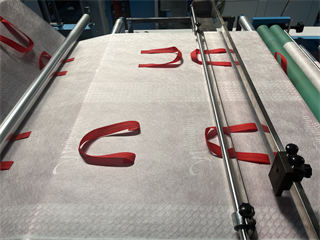

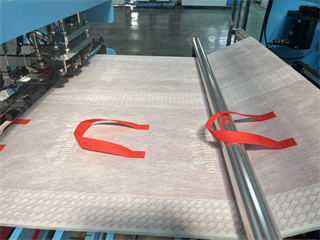

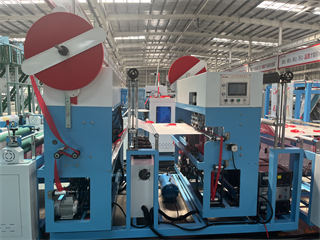

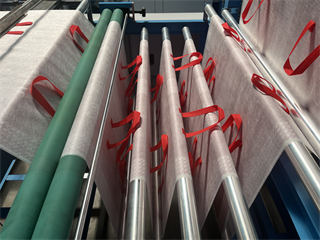

Part 2 online handle attaching


Handle sealing and attaching by ultrasonic welding, Adjusted by touch screen, Man machine interface:touch screen, Motion control:PLC.

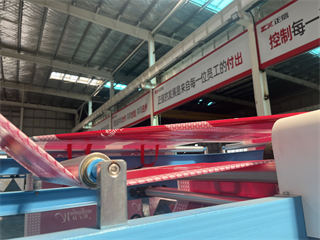

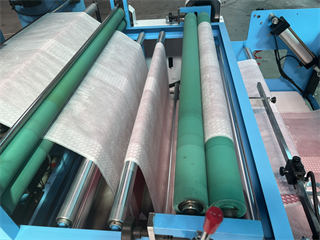

Part 3 Fabric feeding part



stepping motor and rubber roller for fabric feeding.

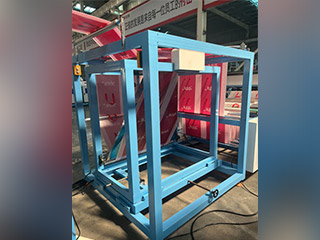

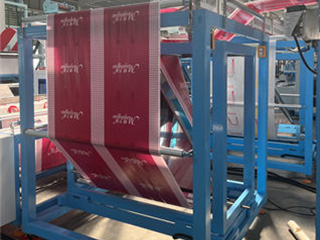

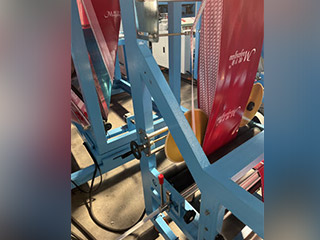

Part 4 Non woven fabric cross folding part




Stainless steel(triangular form) for fabric cross folding, Manual web guider.

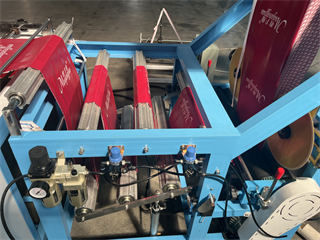

Part 5 Bag bottom / side Gusset part



Feeding and computer length fixed by stepping motor, photocell eye tracking, bottom and side gusset making, and the side sealing of T-shirt bag by ultrasonic.

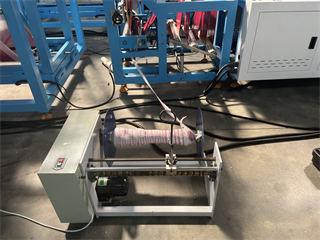

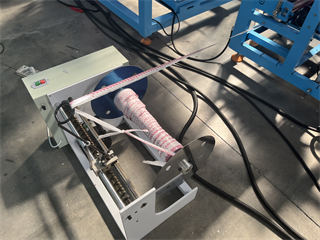

Part 6 Rewinding waste raw material part



Recycling waste fabric.

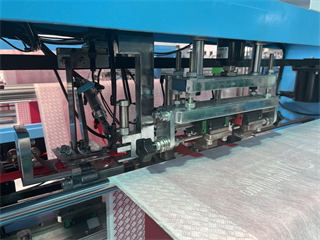

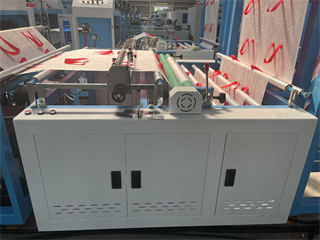

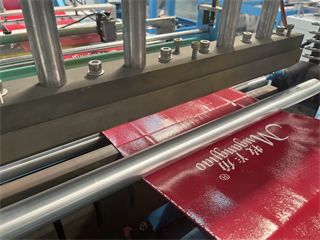

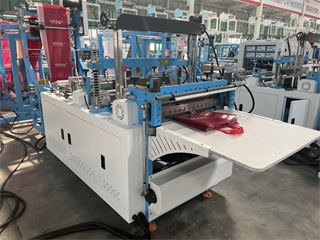

Part 7 Bag sealing and cutting part



Adjustable photoelectric sensor for printing color mark tracking, Online D-cut punching, drawstring bag punching, Bag side sealing by ultrasonic welding system, static eliminator device.

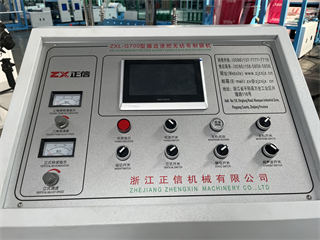

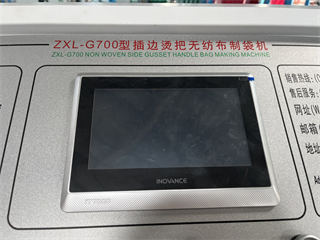

Part 8 Operation Computer



Integrate all the electricity elements, adopts split-type design and PLC motion control as well as touch screen man-machine interface, easy operation and maintaining.

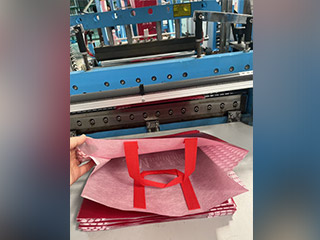

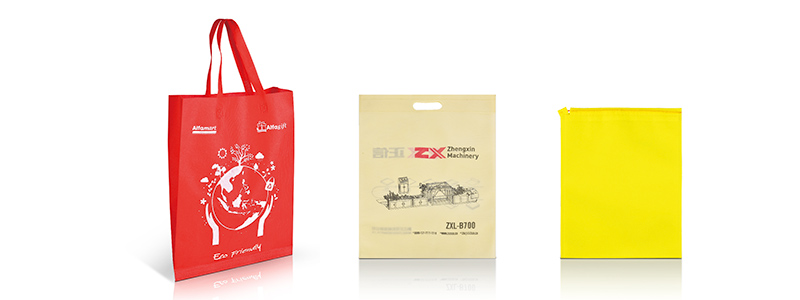

BAG TYPE--- ZXL-G700 machine can make :













Weight: 2800KGS

Container : one 40ft container

Packing: In containers, and packed with plastic films (Wooden case / Wooden pallet also available)

Shipping Mark: N/M  ( depends on customer demands)

Our packaging is very strict. Please rest assured.
