ZXL-LT500

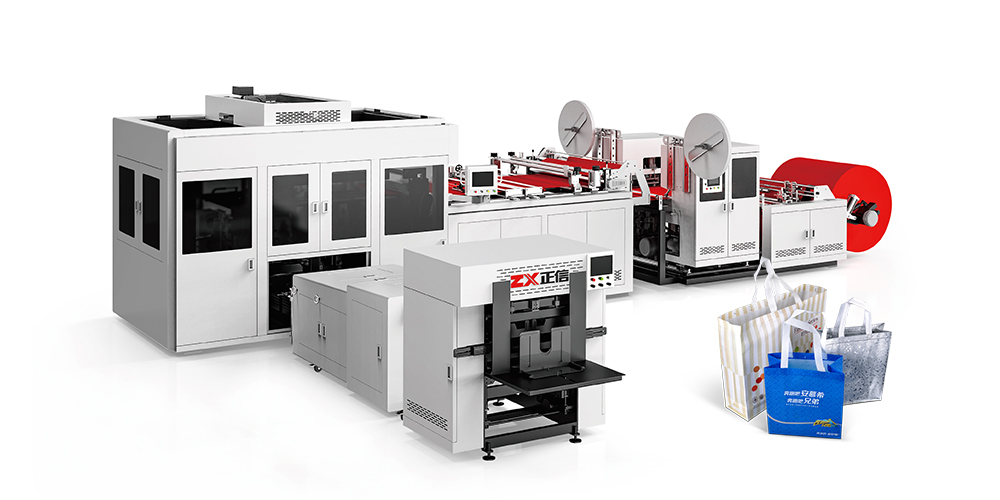

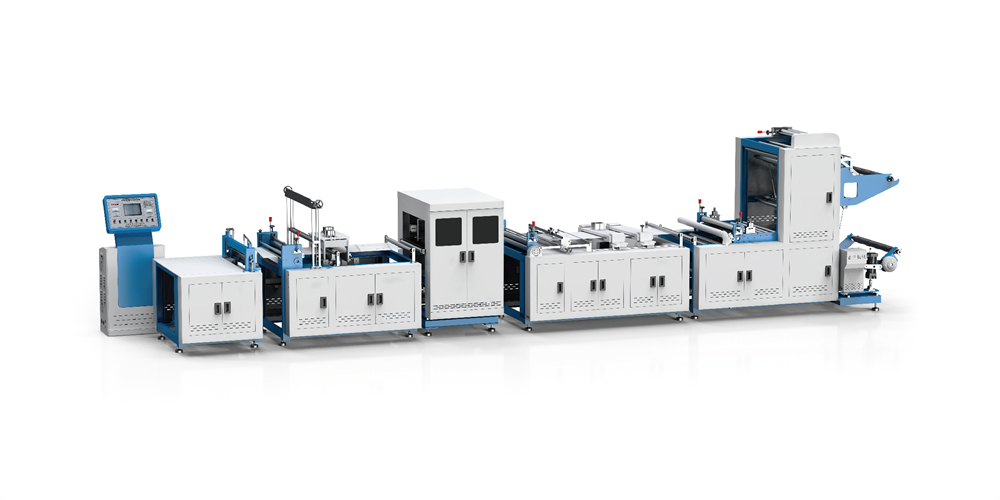

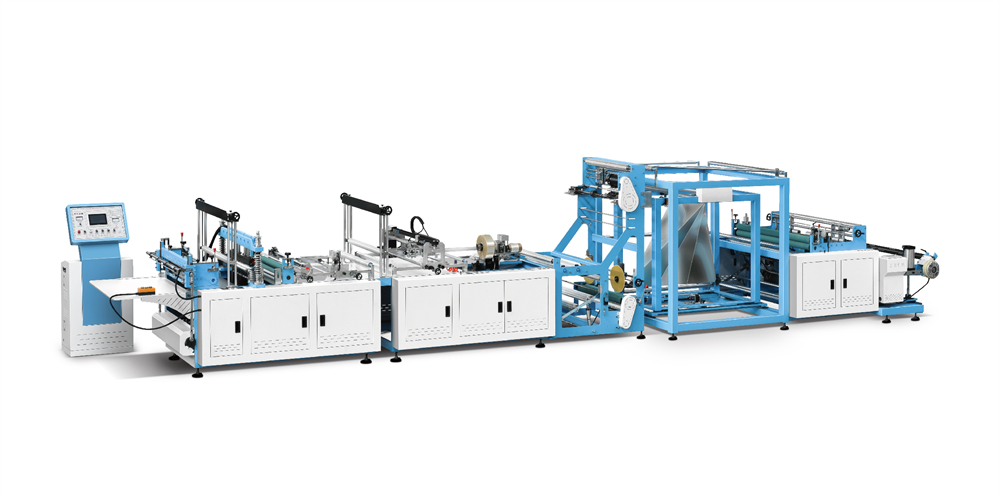

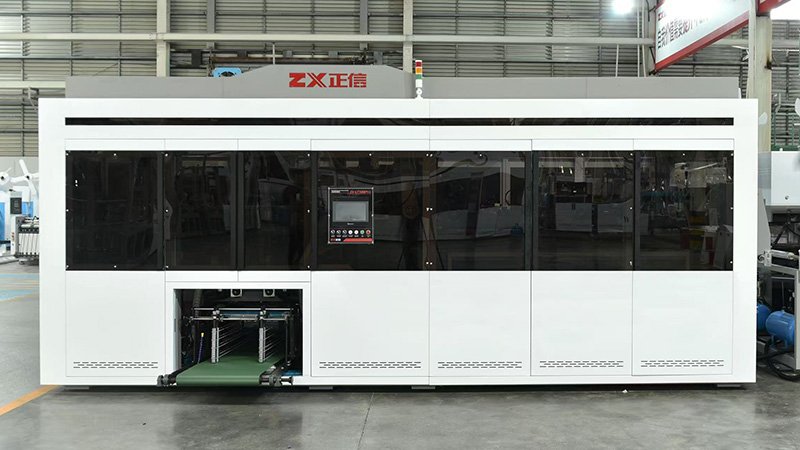

Primary Shaping Non woven Box Bag Making Machine

Primary Shaping Non woven Box Bag Making Machine



Laminated box bag

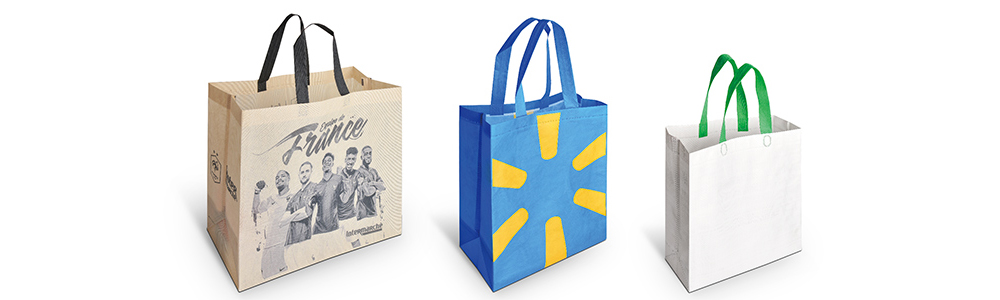

Non woven box bag

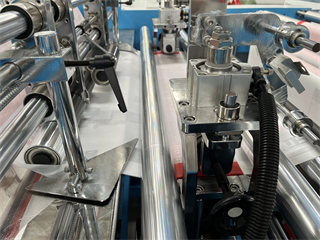

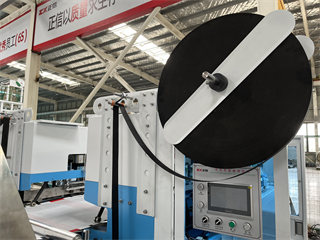

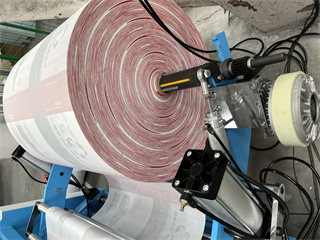

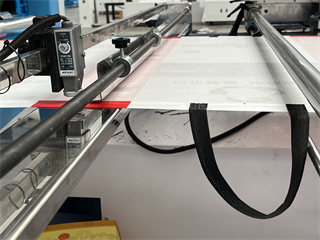

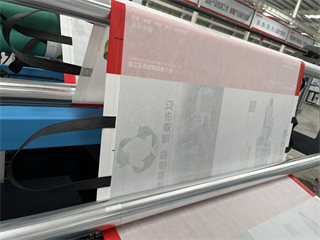

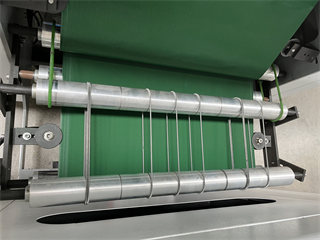

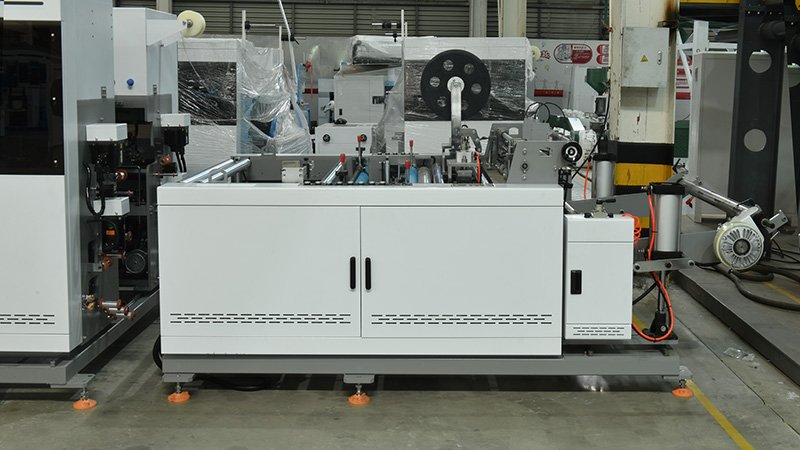

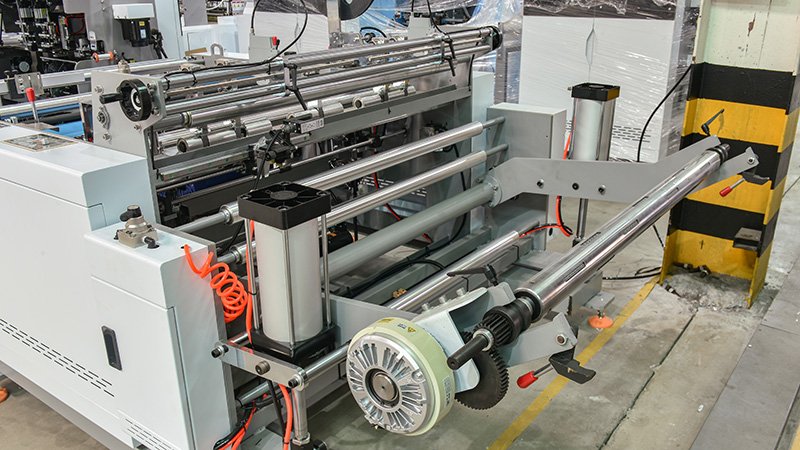

Part 1 Fabric roll Feeding part + loop handle sealing

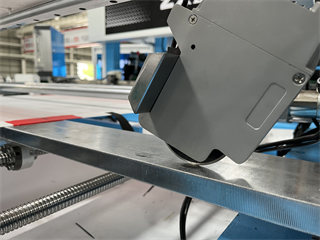

Feeding rectifying deviation and edgefold adopt intelligent position adjustment, instead of traditional manual position adjustment by shaking the handwheel. Online soft handle sealing.

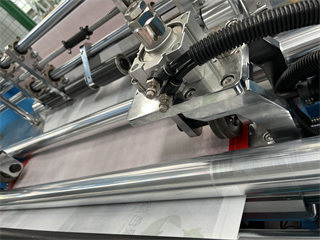

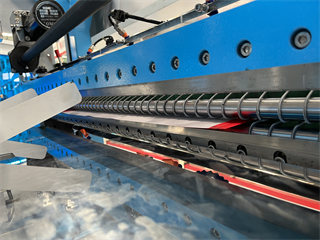

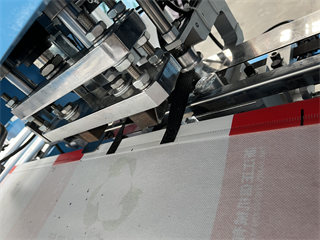

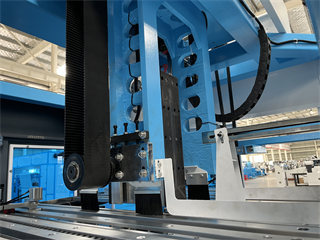

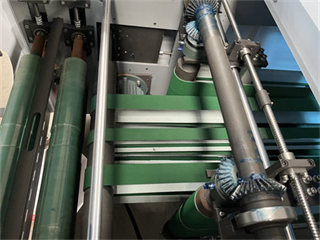

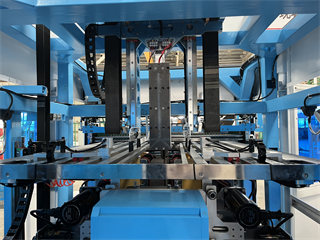

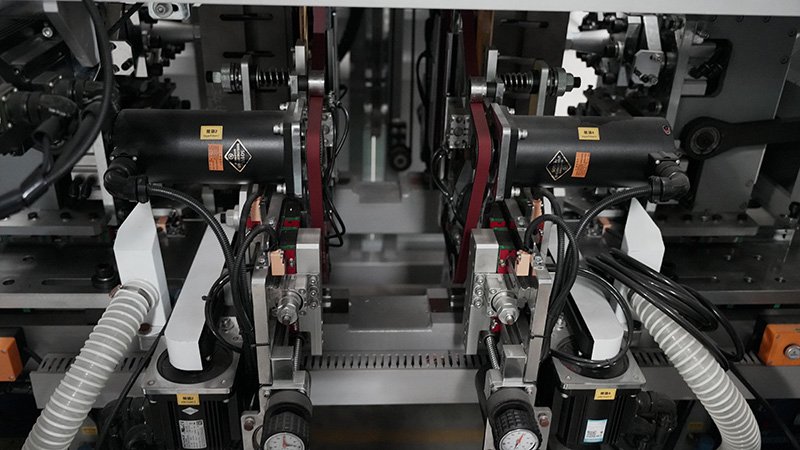

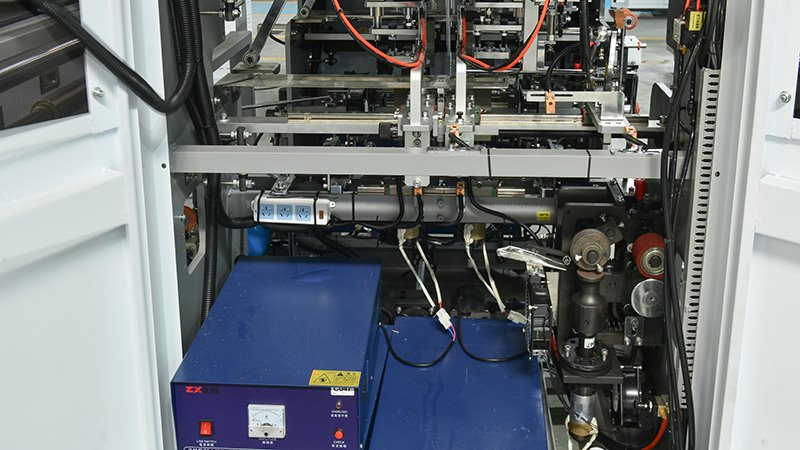

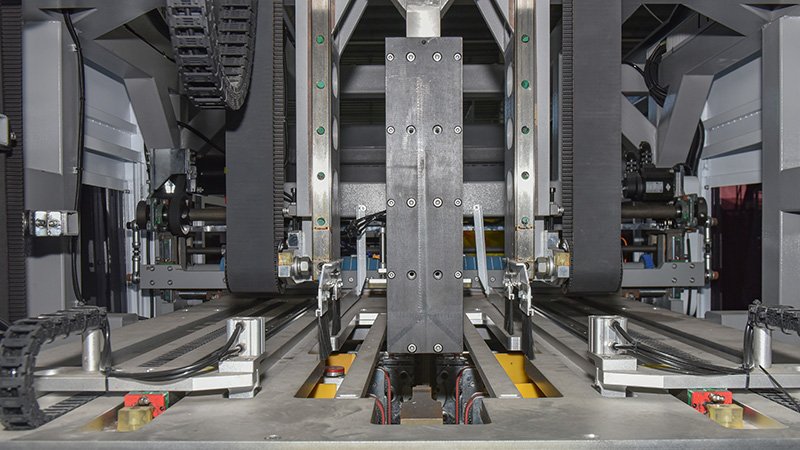

Part 2  Fabric cutting + bag forming part

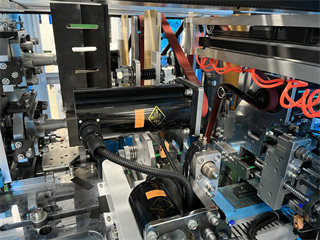

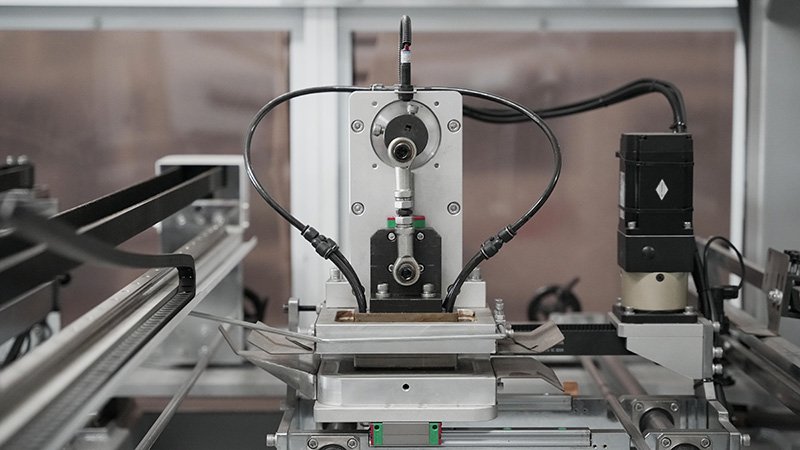

The creasing part moves back and forth with intelligent position adjustment. Driving the air knives to roll left and right can make finished bags more dimensional. Multifunctional mold, ultrasonic welding.

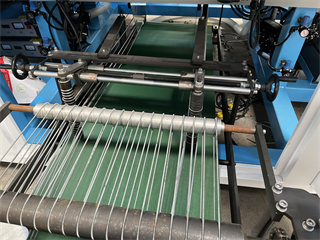

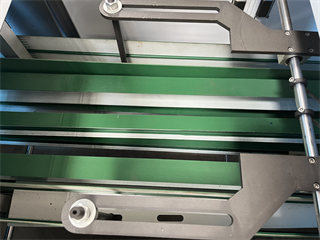

Part 3  Bag folder part



Use conveyor belt to convey bags and fold.

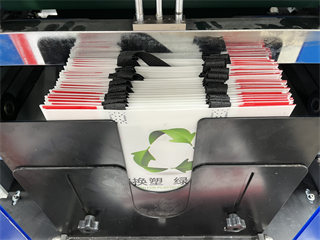

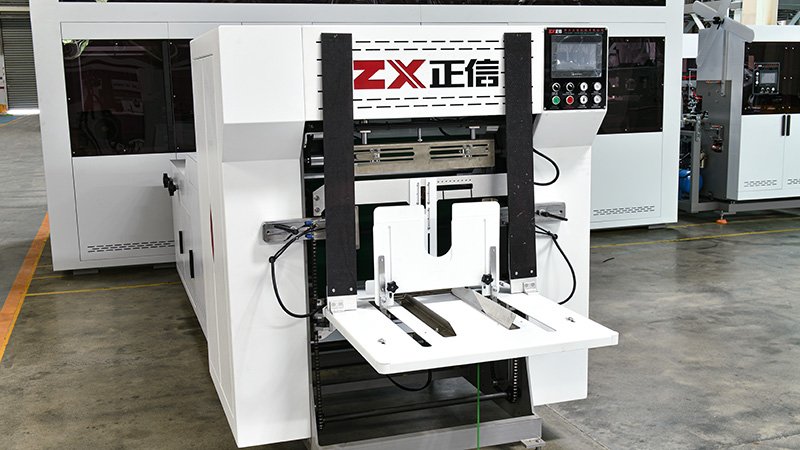

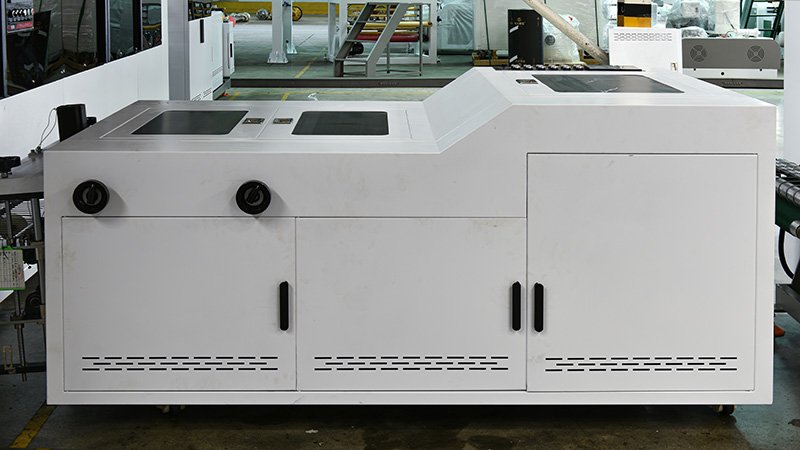

Part 4  Bag Collecting Machine




The new type bag collecting machine adopts the visual operation of the computer display screen. According to the need, the pre-set quality can be as many as one dozen, which is convenient to collect neat bag.

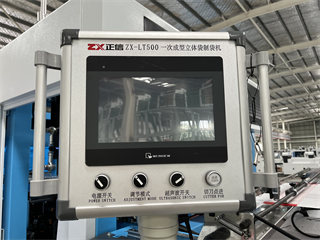

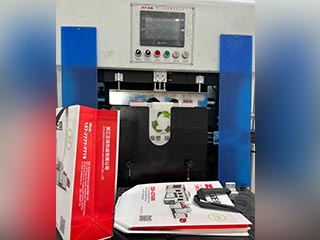

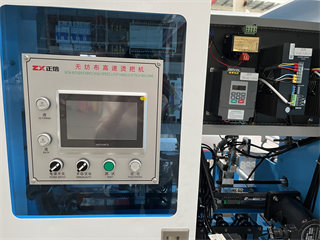

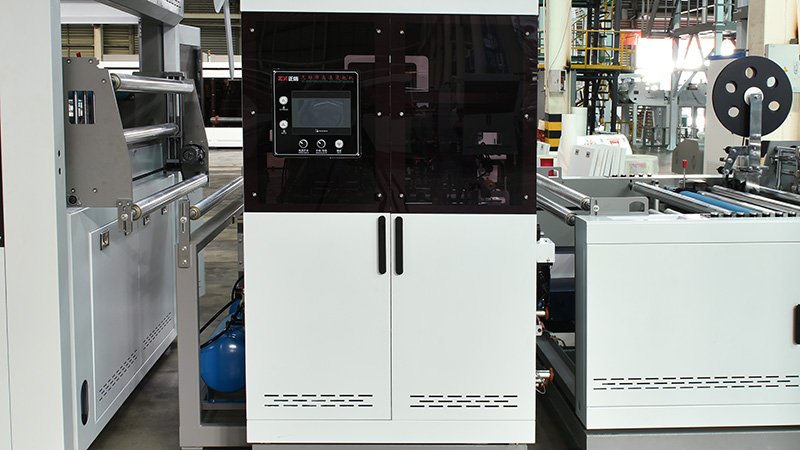

Part 5  Operation Computer



We only need to set parameters in the computer , which is accurate to position and convenient to use.


MAIN TECHNICIAN VARIABLES:

Suitable material

Non woven fabric/non woven laminating fabric

Material width

550-1160mm

Material thickness

70-120g

Bag height

200-450mm

Bag width

240-500mm

power

13kw.h  when speed in 70pcs/min

Max power

40KW

Speed

45-80pc/min

Bag gusset

80-200mm

Machine weight

9000kg

Handle size

380-600mm

Power supply

380V

Install size

8m*6m*2.6*(L*W*H)

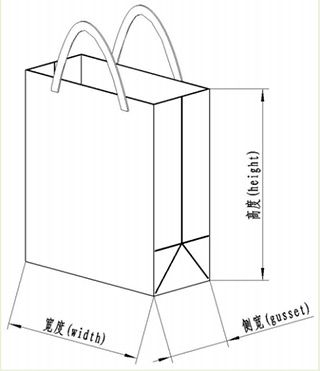

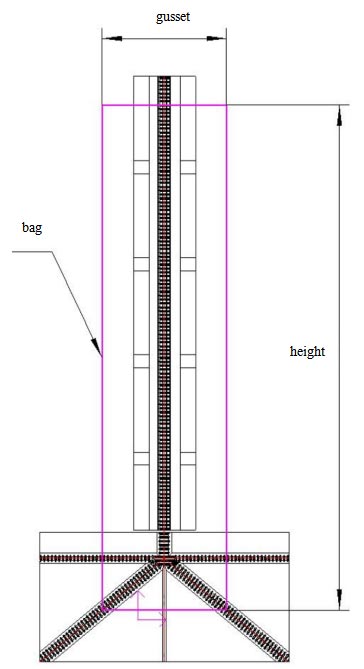

Bag gusset and bag height size proportion:


Size proportion

Gusset

(mm)

Height

max(mm)

80

380

90

385

100

390

110

395

120

400

130

405

140

410

150

415

160

420

170

425

180

430

190

440

200

450

Weight: 9000KGS

Container : one 40ft container

Packing: In containers, and packed with plastic films (Wooden case / Wooden pallet also available)

Shipping Mark: N/M  ( depends on customer demands)

Our packaging is very strict. Please rest assured.
