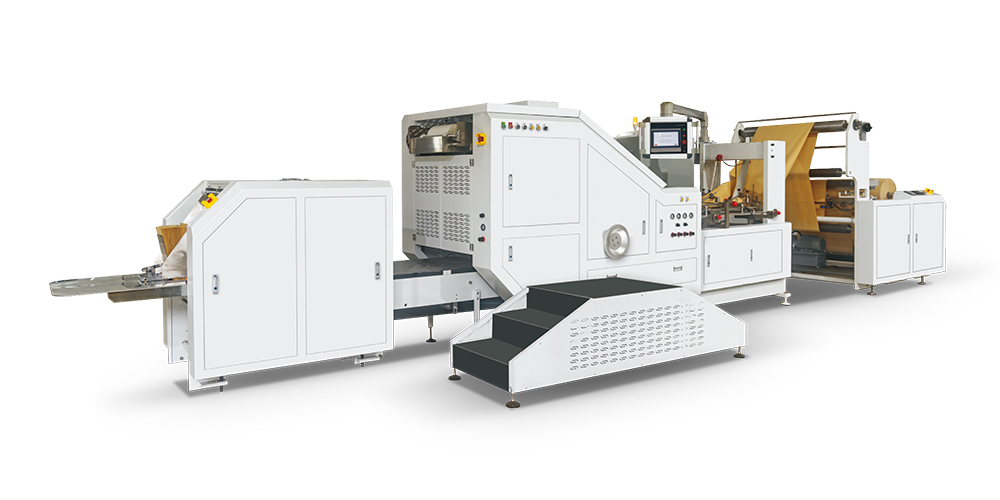

Zhengxin box bag making machine model is the most advanced fully automatic production machine for paper bags. We are committed to maintaining its latest performance and long-term stable operation. This document introduces the machine’s technical parameters, configuration details, bag-making parameters, and an introduction to the machine and process. It aims to objectively and quickly explain the model’s technical details through concise, precise descriptions. Zhengxin remains your long-term reliable partner, supporting steady business growth and contributing value to global environmental protectio. This document includes the following modules: introduction to bag types, bag-making process, bag parameters, machine parameters, configuration details of the machine, introduction to auxiliary equipment, pre-sales and after-sales policies, etc.
Machine Parameter：
| Dimension | Parameter |
| Model | ZX-B330 |
| Bag length | 270-530 mm |
| Bag width | 130-330 mm |
| Bottom width | 60-180 mm |
| Roll width | 380-1050 mm |
| Roll diameter | φ1200mm |
| Roll core diameter | φ76mm |
| Machine speed | 30-200 pcs/min |
| Bag making speed | 30-180 pcs/min |
| Paper Thickness | 60-150 gsm |
| Power supply | 3 phase 380V |
| Total power | 12 kW |
| Overal dimension | 10000x3700x1900 mm |
| Machine weight | 8500 Kgs |

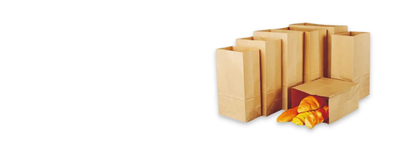

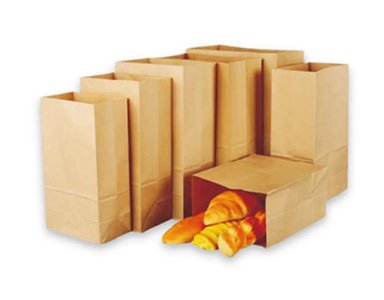

Bag Samples：

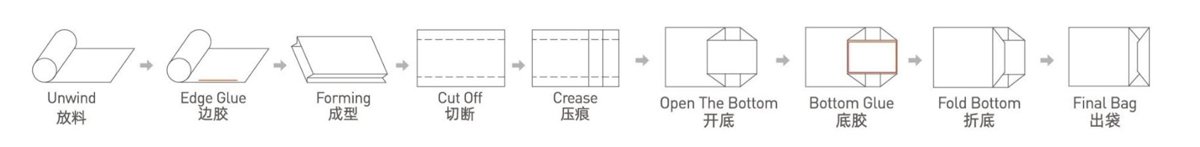

Making Process：
Fundamental stages and sequence of the box bag making process

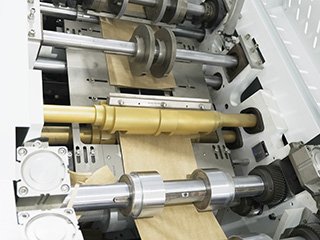

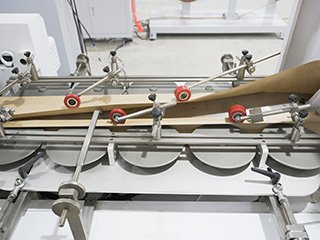

Mechanical details：

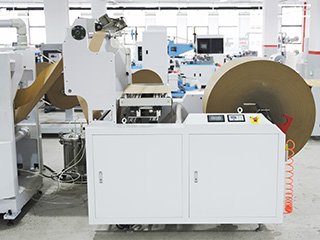

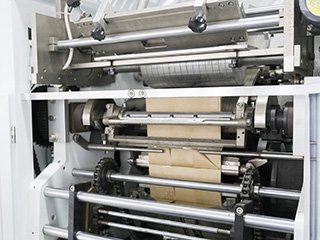

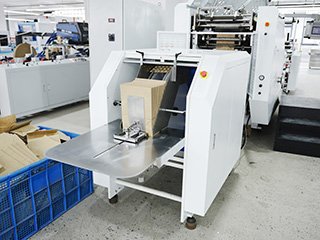

Bag collection part | Bottom folding pasting detail | Feeding part |
 |  |  |

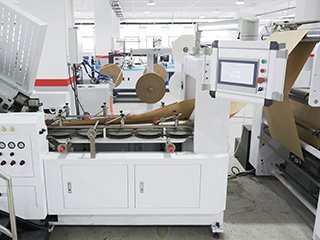

Host part detail | Transimision folding details | Transmision folding part |
 |  |  |
Weight: 9000KGS

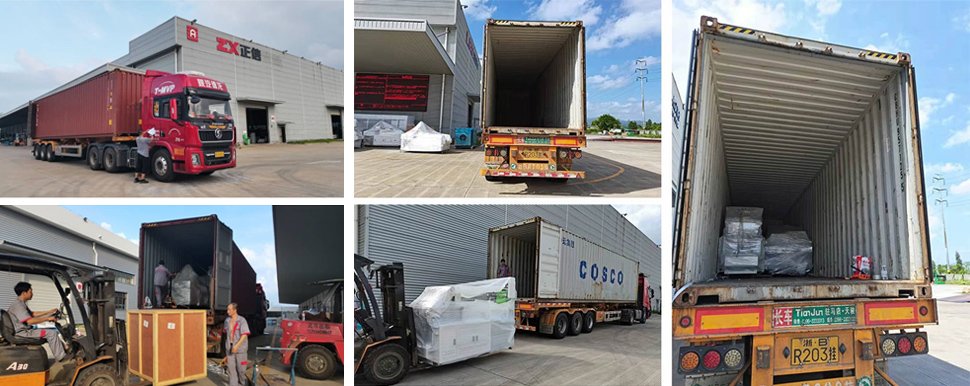

Container : one 40ft container
Packing: In containers, and packed with plastic films (Wooden case / Wooden pallet also available)
Shipping Mark: N/M ( depends on customer demands)
Our packaging is very strict. Please rest assured.
