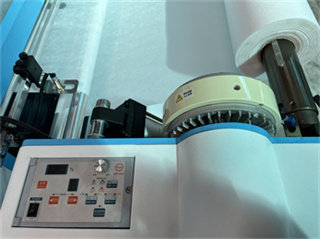

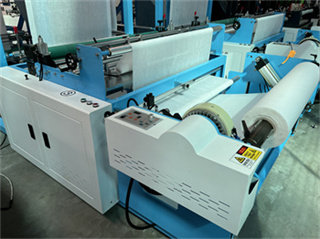

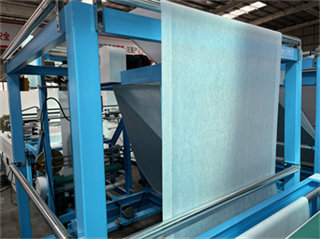

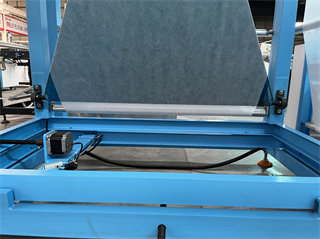

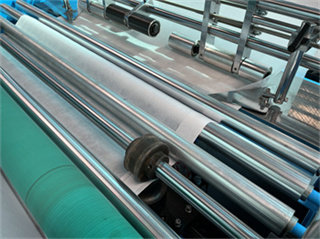

Part 1 Fabric roll Feeding part |
||
 |
 |
 |
|
Max width of unwinding 1300MM,max diameter of unwinding 1000MM. Auto feeding, Photocell eye tracking, Auto rectifying deviation, Magnet powder tension control,folding sealing by ultrasonic welding, custom made round embossing mould |
||
|

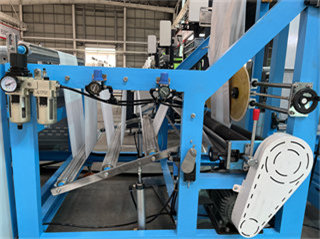

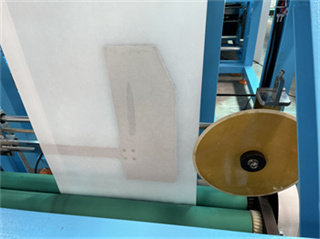

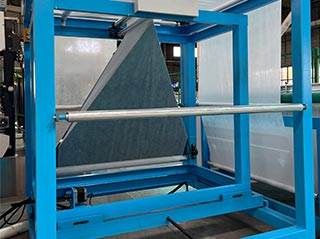

Part 2 Folding part |
||
|
|
 |
|
| Non woven fabric cross folding device, easy adjustment, which make the bog mouth neat and tidy even without moving the whole machine. | ||
|
Part 3 Bag bottom / side Gusset part |
||
 |
 |
 |
| Feeding and computer length fixed by stepping motor, photocell eye tracking, bottom and side gusset making, and the side sealing of T-shirt bag by ultrasonic. | ||
|

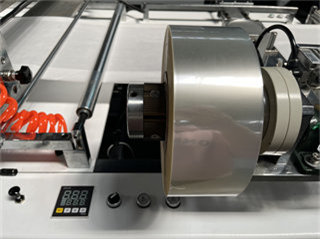

Part 4 Triangle Indentation box bag forming part |
||
 |
 |
 |
| The function of box bag three-dimensional, triangle sealing by ultrasonic, PET film unwinding and rewinding and D-cut punching unit. gusset size of box bag from 80 MM to 160 MM,custom made gusset size up to 300 MM. | ||

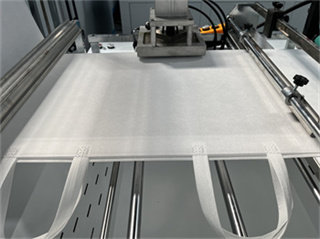

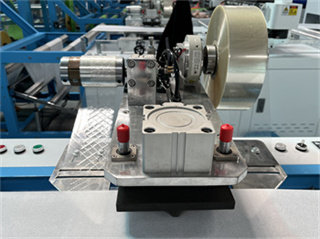

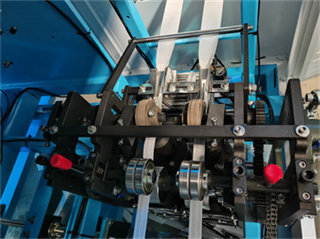

| Part 5 Online handle sealing | ||
 |
 |
 |
| Automatic integration ultrasonic handle sealing device, adopts PLC motion control and touch screen man-machine interface, easy operation, auto stop when no material. Handle feeding and length fix by stepping motor, high stability, handle attaching speed up to 75 pcs/min. | ||

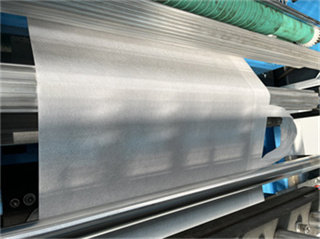

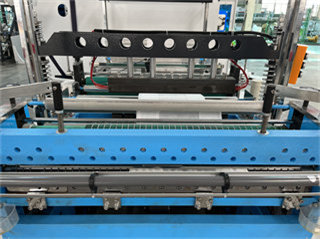

| Part 6 Bag making part | ||
 |
 |
 |
| The function of Bag side sealing , cutting, collection. adjustable photoelectric sensor for printing color mark tracking, triangle removing by punching unit and Durable cold cutter. Adopts two Taiwan brand ultrasonic welding system(horn 300 MM) , different specs of ultrasonic can be used to meet different non woven fabric GSM. | ||

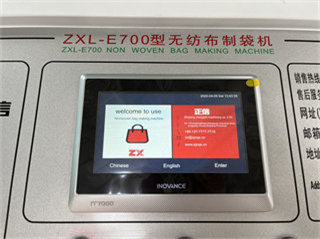

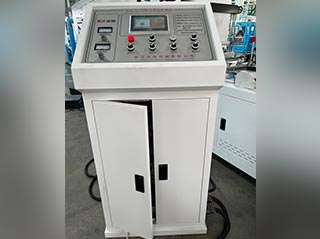

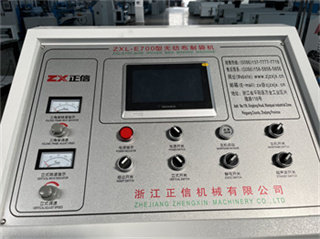

| Part 7 Operation Computer | ||
 |
 |
 |
| Integrate all the electricity elements, adopts split-type design and PLC motion control as well as touch screen man-machine interface, easy operation and maintaining. | ||

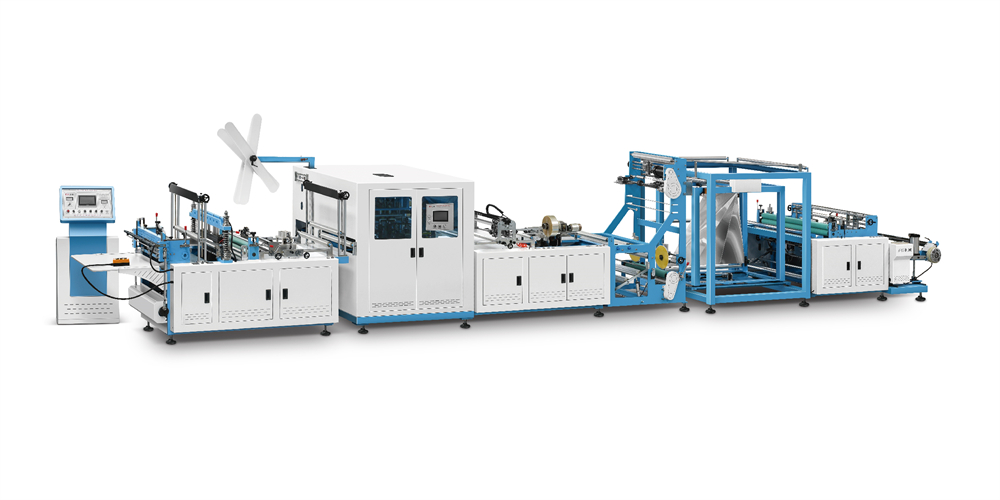

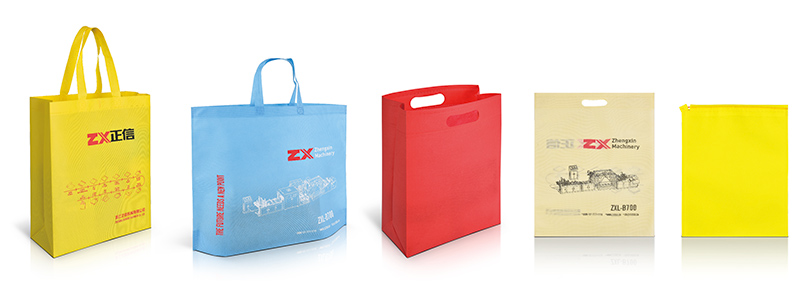

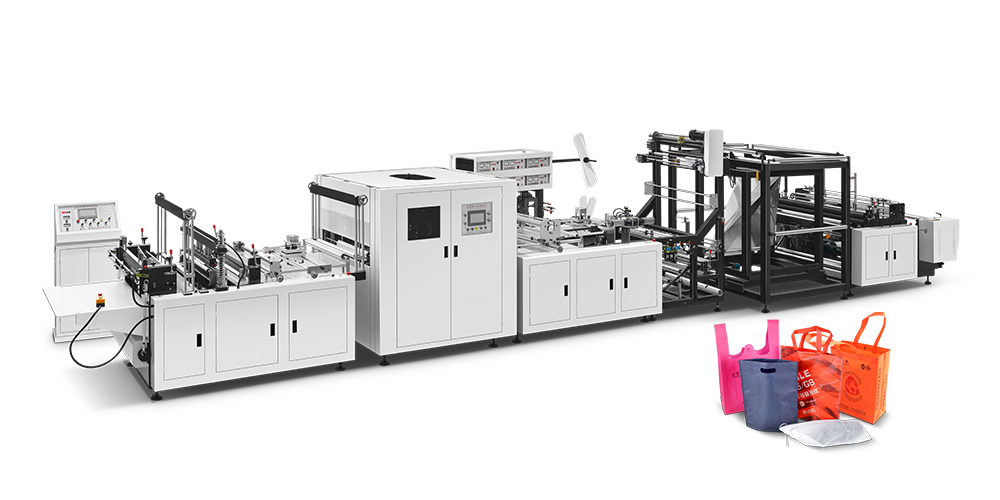

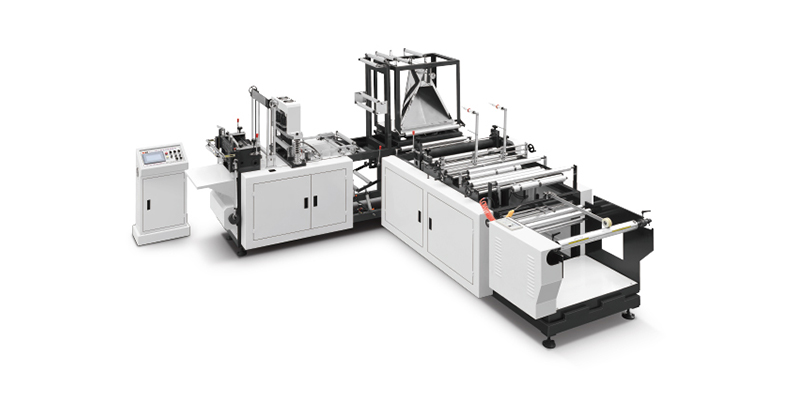

BAG TYPE--- ZXL-E700 machine can make :
 |
Non woven box handle bag(Making online) |
|
Bag Height: 200-580mm Bag Width: 100-800mm Bag Folding: 30-80mm Bag Bottom Gusset: 20-80mm
Handle length : 380-600mm Handle Width: 2-3cm |
|
 |
Non woven handle bag ( Making online) |
|
Handle bag with or without bottom Bag Height: 250-580mm Bag Width: 100-800mm Bag Folding: 30-80mm Bag Bottom Gusset: 20-80mm
Handle length : 380-600mm Handle Width: 2-3cm |
|
 |
Non woven D-cut bag ( Making online) |
|
D-cut bag with or without bottom Bag Height: 250-580mm Bag Width: 100-800mm Bag Folding: 30-80mm Bag Bottom Guesst: 20-80mm |
|
 |
Non woven shoes bag / Drawstring bag (Making online) |
|
Bag Height: 250-580mm Bag Width: 100-800mm |
|
 |
Non woven T-shirt bag / Vest bag/ W-cut bag / U-cut bag( need make separately)Need extra punching machine |
|
Bag Height: 200-700mm Bag Width: 200-400mm Bag Guesst: 30-80mm |
Weight: 4000KGS
Container : one 40ft container and one
Packing: In containers, and packed with plastic films (Wooden case / Wooden pallet also available)
Shipping Mark: N/M ( depends on customer demands)
