Loop handle bag |
D-cut bag |
Shoes bag |
T-shirt bag |
Part 1 Fabric roll Feeding part |
||
![]() |
![]() |
![]() |
Max width of unwinding 1300MM, max diameter of unwinding 1000MM. Auto feeding, Photocell eye tracking, Auto rectifying deviation, Magnet powder tension control,folding sealing by ultrasonic welding, custom made round embossing mould. |
Part 2 Folding part |
||
|
![]() |
|
Non woven fabric cross folding device, easy adjustment, which make the bog mouth neat and tidy even without moving the whole machine. |
Part 3 Bag bottom / side Gusset part |
||
![]() |
![]() |
![]() |
Feeding and computer length fixed by stepping motor, photocell eye tracking, bottom and side gusset making, and the side sealing of T-shirt bag by ultrasonic. |
Part 4 Online handle sealing |
||
![]() |
![]() |
![]() |
Automatic integration ultrasonic handle sealing device, adopts PLC motion control and touch screen man-machine interface, easy operation, auto stop when no material. Handle feeding and length fix by stepping motor, high stability, handle attaching speed up to 75 pcs/min. |
Part 5 Bag making part | ||
![]() |
![]() |
![]() |
The function of Bag side sealing , cutting, collection. adjustable photoelectric sensor for printing color mark tracking, and Durable cold cutter. Adopts two Taiwan brand ultrasonic welding system(horn 300 MM) , different specs of ultrasonic can be used to meet different non woven fabric GSM. |

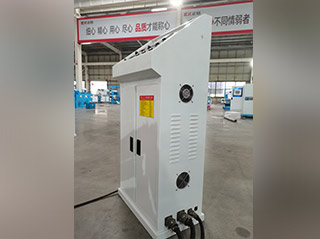

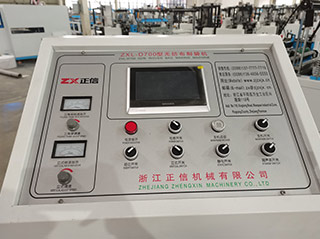

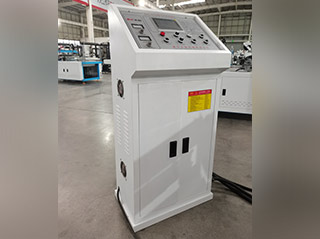

Part 6 Operation Compute | ||
![]() |
![]() |
![]() |
Integrate all the electricity elements, adopts split-type design and PLC motion control as well as touch screen man-machine interface, easy operation and maintaining. |

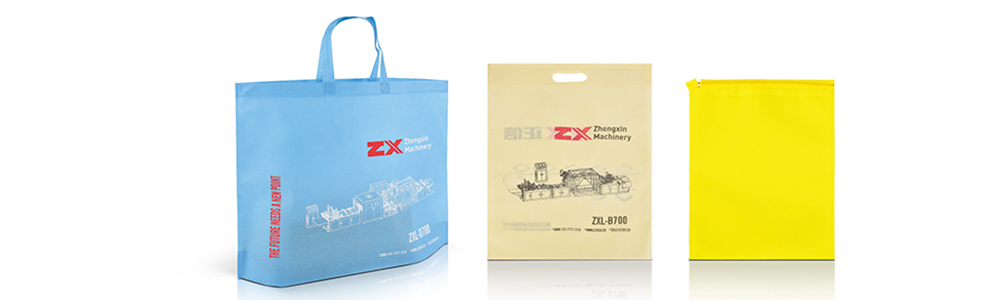

BAG TYPE--- ZXL-D700 machine can make :
![]() |
Non woven handle bag ( Making online) |
Handle bag with or without bottom Bag Height: 250-580mm Bag Width: 100-800mm Bag Folding: 30-80mm Bag Bottom Gusset: 20-80mm
Handle length : 380-600mm Handle Width: 2-3cm |
|
![]() |
Non woven D-cut bag ( Making online) |
D-cut bag with or without bottom Bag Height: 250-580mm Bag Width: 100-800mm Bag Folding: 30-80mm Bag Bottom Guesst: 20-80mm |
|
![]() |
Non woven shoes bag / Drawstring bag (Making online) |
Bag Height: 250-580mm Bag Width: 100-800mm |
|
![]() |
Non woven T-shirt bag / Vest bag/ W-cut bag / U-cut bag( need make separately)Need extra punching machine |
Bag Height: 200-700mm Bag Width: 200-400mm Bag Guesst: 30-80mm |
Weight: 3200KGS
Container : one 40ft container and one
Packing: In containers, and packed with plastic films (Wooden case / Wooden pallet also available)
Shipping Mark: N/M ( depends on customer demands)
Our packaging is very strict. Please rest assured.
