ZXL-C700

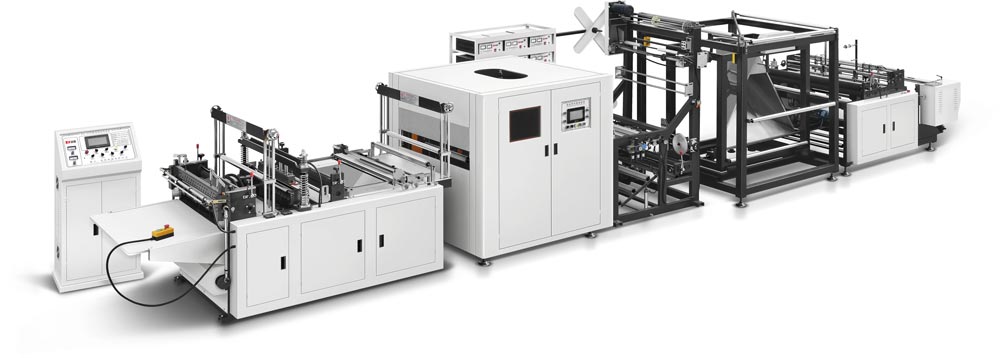

Multi-functional Non woven Box Bag Making Machine

Multi-functional Non woven Box Bag Making Machine

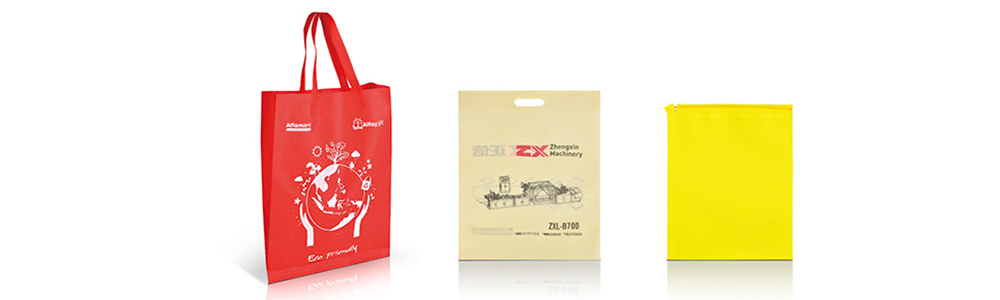

Non woven box bag

D-cut bag

Shoes bag

T-shirt bag


Part 1 Fabric roll Feeding part




Max width of unwinding 1300MM, max diameter of unwinding 1000MM Auto feeding, Photocell eye tracking, Auto rectifying deviation, Magnet powder tension control,folding sealing by ultrasonic welding, custom made round embossing mould.

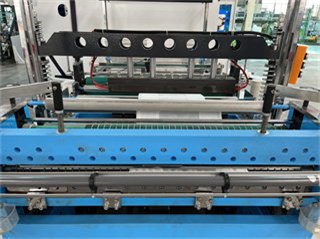

Part 2  Folding part

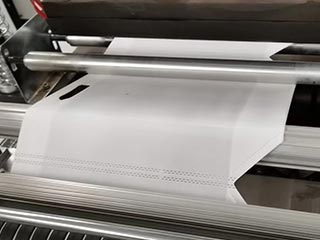

Non woven fabric cross folding device, easy adjustment, which make the bog mouth neat and tidy even without moving the whole machine.


Part 3  Bag bottom / side Gusset part



Feeding and computer length fixed by stepping motor, photocell eye tracking, bottom and side gusset making, and the side sealing of T-shirt bag by ultrasonic.


Part 4  Triangle Indentation box bag forming part

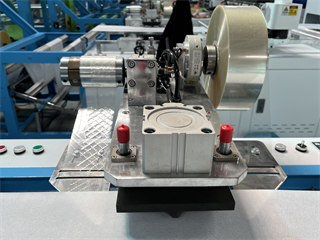

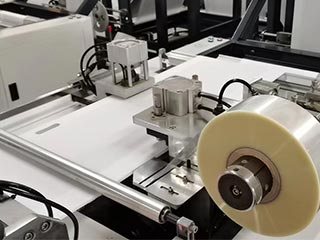

The function of box bag three-dimensional, triangle sealing by ultrasonic, PET film unwinding and rewinding and D-cut punching unit. gusset size of box bag from 80 MM to 160 MM,custom made gusset size up to 300 MM.


Part 5  Bag making part

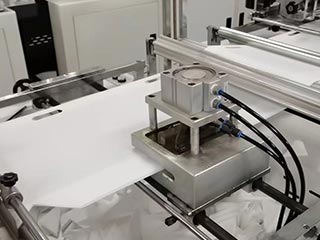

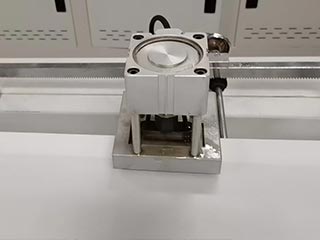

The function of Bag side sealing , cutting, collection. adjustable photoelectric sensor for printing color mark tracking, triangle removing by punching unit and Durable cold cutter. Adopts two Taiwan brand ultrasonic welding system(horn 300 MM) , different specs of ultrasonic can be used to meet different non woven fabric GSM.

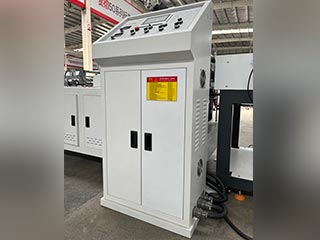

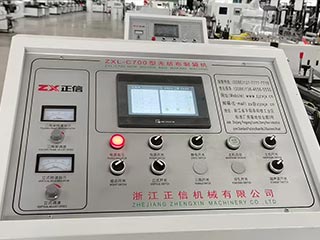

Part 6  Operation Computer

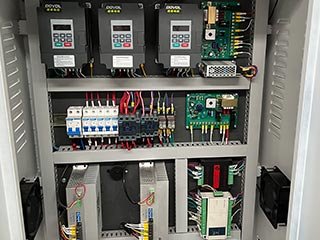

Integrate all the electricity elements, adopts split-type design and PLC motion control as well as touch screen man-machine interface, easy operation and maintaining.

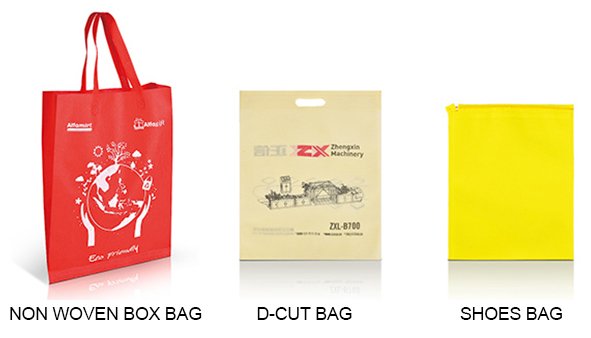

BAG TYPE--- ZXL-C700 machine can make :



Non woven box handle bag(without handle) (Making online)

Bag Height: 200-580mm

Bag Width: 100-800mm

Bag Folding: 30-80mm

Bag Bottom Gusset: 20-80mm


Loop handle need make separately (Need add Manual loop handle sealing machine)


Handle length : 380-600mm

Handle Width: 2-3cm


Non woven D-cut bag ( Making online)

D-cut bag with or without bottom

Bag Height: 250-580mm

Bag Width: 100-800mm

Bag Folding: 30-80mm

Bag Bottom Guesst: 20-80mm


Non woven shoes bag / Drawstring bag (Making online)

Bag Height: 250-580mm

Bag Width: 100-800mm


Weight: 3000KGS

Container : one 40ft container and one

Packing: In containers, and packed with plastic films (Wooden case / Wooden pallet also available)

Shipping Mark: N/M  ( depends on customer demands)

Our packaging is very strict. Please rest assured.
