ZXL-B700

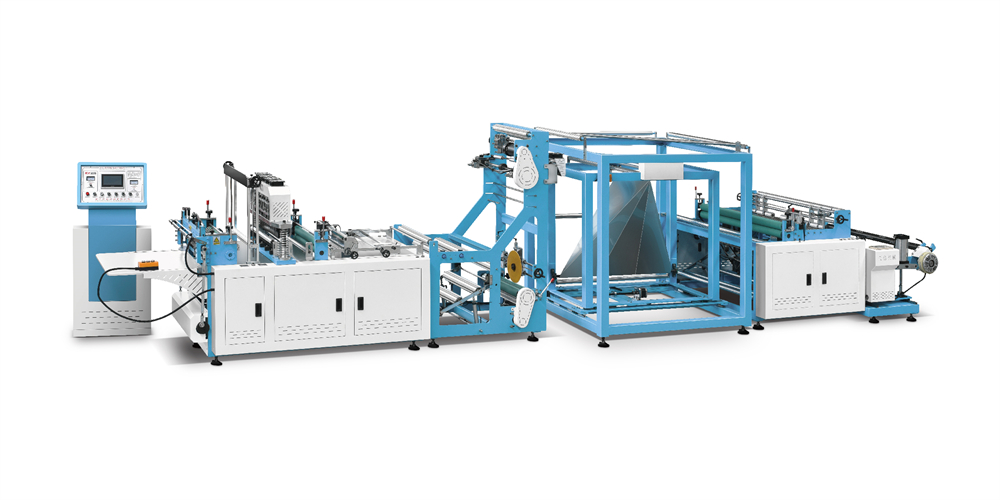

Automatic Non woven D-cut Bag Making Machine

Tel: 0086-13736786969

Whatsapp: +8613736786969

Wechat: zjzxjx3

Email: zx3@zjzxjx.cn

ZXL-B700

D-cut bag

Shoes bag

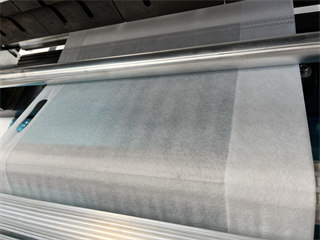

Part 1 Fabric roll Feeding part




Max width of unwinding 1300MM, max diameter of unwinding 1000MM Auto feeding, Photocell eye tracking, Auto rectifying deviation, Magnet powder tension control,folding sealing by ultrasonic welding, custom made round embossing mould.


Part 2  Folding part


Non woven fabric cross folding device, easy adjustment, which make the bog mouth neat and tidy even without moving the whole machine.


Part 3  Bag bottom / side Gusset part

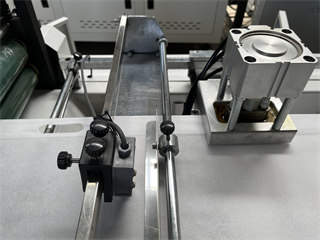

Feeding and computer length fixed by stepping motor, photocell eye tracking, bottom and side gusset making, and the side sealing of T-shirt bag by ultrasonic.


Part 4  Bag making part

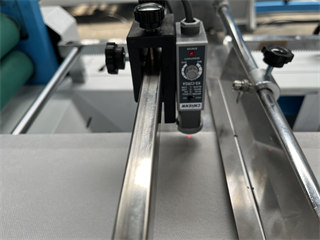

The function of Bag side sealing , cutting, collection. adjustable photoelectric sensor for printing color mark tracking and Durable cold cutter. Adopts two Taiwan brand ultrasonic welding system(horn 300 MM) , different specs of ultrasonic can be used to meet different non woven fabric GSM.

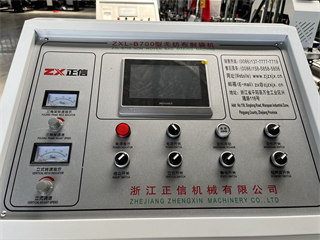

Part 5  Operation Computer



Integrate all the electricity elements, adopts split-type design and PLC motion control as well as touch screen man-machine interface, easy operation and maintaining.


BAG TYPE--- ZXL-B700 machine can make :



Non woven D-cut bag ( Making online)

D-cut bag with or without bottom

Bag Height: 250-580mm

Bag Width: 100-800mm

Bag Folding: 30-80mm

Bag Bottom Guesst: 20-80mm


Non woven shoes bag / Drawstring bag (Making online)

Bag Height: 250-580mm

Bag Width: 100-800mm


Non woven T-shirt bag / Vest bag/ W-cut bag / U-cut bag( need make separately)Need extra punching machine

Bag Height: 200-700mm

Bag Width: 200-400mm

Bag Guesst: 30-80mm


Weight: 2000KGS

Container : one 20ft container and one

Packing: In containers, and packed with plastic films (Wooden case / Wooden pallet also available)

Shipping Mark: N/M  ( depends on customer demands)

Our packaging is very strict. Please rest assured.
