ZXH-C41200

Four Color Non woven Letterpress Printing Machine

Four Color Non woven Letterpress Printing Machine

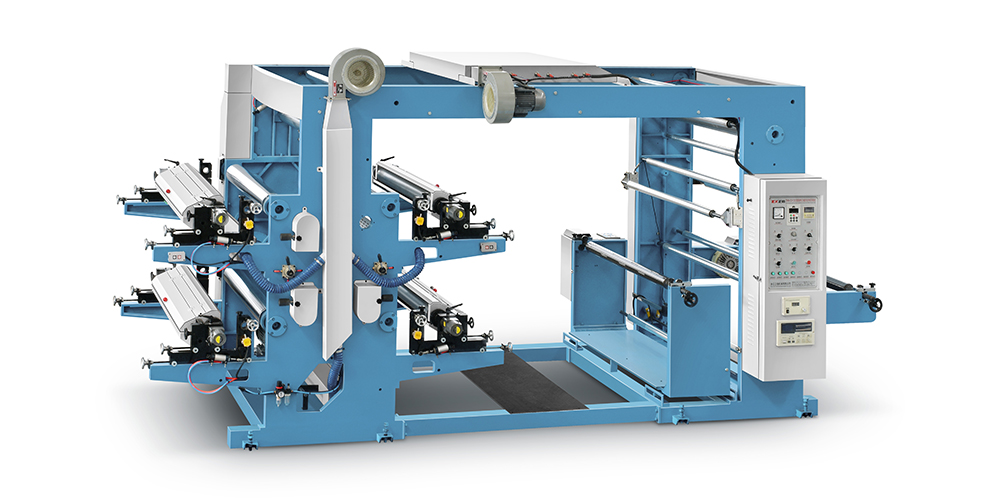

This machine is a four-color flexography printer, adopts resin plate and water-base ink.  specialized in the printing of non woven fabric,it is an idea equipment for non woven printing.


Main Technical Variables:

Type

ZXH-C4800

ZXH-C41000

ZXH-C41200

Max Material Width

800mm

1000mm

1200mm

Max Diameter of Material Roll

1000mm

1000mm

1000mm

Max Printing Width

760mm

960mm

1160mm

Printing Length

190-1000mm

190-1000mm

190-1000mm

Plate Thickness

2.38/3.94mm

2.38/3.94mm

2.38/3.94mm

Printing Speed

10-60m/min

10-60m/min

10-60m/min

Total Power

10KW/380V

13KW/380V

18KW/380V

Overall Dimension

4800×1800×2400

4800×2000×2400mm

4800×2300×2400mm

Weight

2000KG

2200KG

2800KG

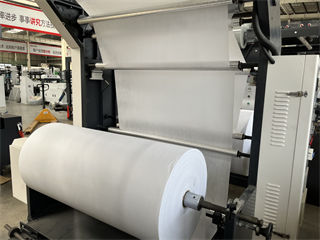

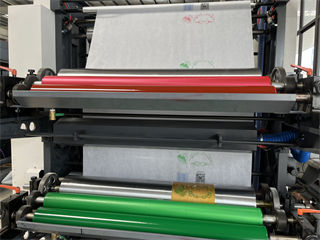

Part 1 Unwinding part + Printing part

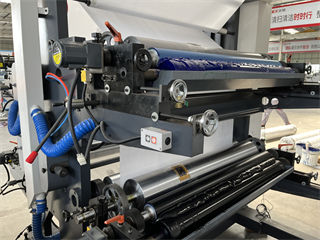

Adopts netting ink transfer roller,uniform process. Meter-counter could freely setting the printing quantity according to the requirement,auto stopping when finish or material break.

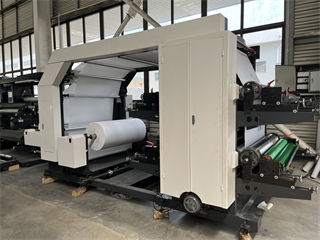

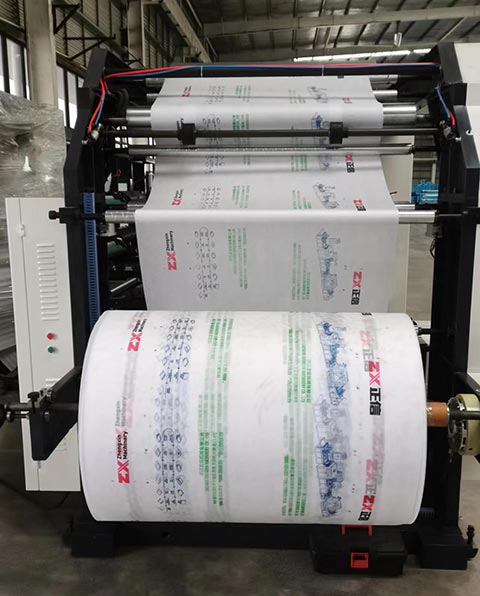

Part 2  Heating and drying part + Rewinding part

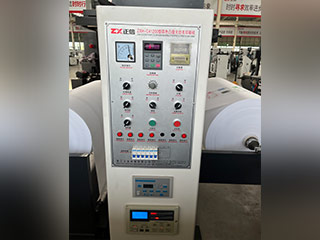

Equipped with reliable drying system,high speed rotation.auto cutout when stop. Different printing speed can be met by frequency conversion speed control.






Weight: 2800KGS

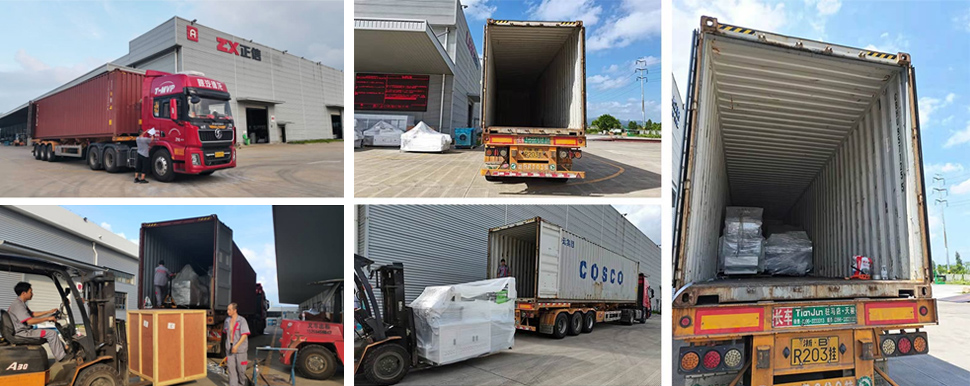

Container : one 40ft container or one 20ft container

Packing: In containers, and packed with plastic films (Wooden case / Wooden pallet also available)

Shipping Mark: N/M  ( depends on customer demands)

Our packaging is very strict. Please rest assured.
