ZXQ-A1200

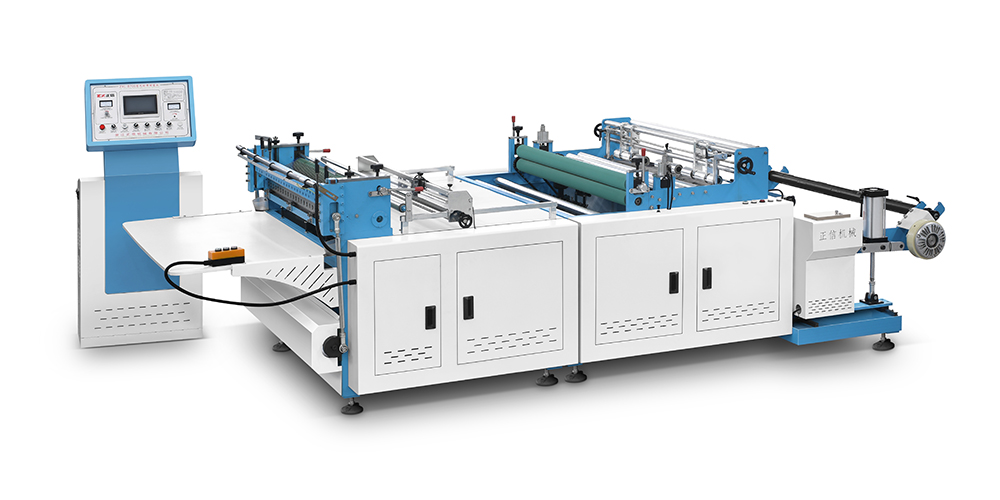

Non woven Cross Cutting Machine with Ultrasonic Welding

Non woven Cross Cutting Machine with Ultrasonic Welding

Product Introduction:

This machine adopts mechanical,electrical,optical and pneumatic integration technology,suitable for non-woven fabric transverse cutting,folding and emboss forming at the same time,also can be used for adhesive sticker,paper,film,PVC,aluminum foil and all those kind of roll material horizontal slicing,which is widely used in non-woven bag industry.


Feature:

1.This machine equipped with photoelectric tracking fixed system and stepping motor for control the intercept of fixed length.

2.This machine  adopts electrical,optical and pneumatic integration technology,which simplified the machine’s operation,improve the machine ’s operation,improve the machine’s cutting precision,mechanical stability and noise level.

3.This machine equipped with ultrasonic thermal bonding device,roll material feeding system manual unwinding magnetic powder tension control device,has the function of edge folding and emboss forming,auto counting,alarming when stop etc.

4.Adopts heavy quality knife for cutting,the product is tidy and no sharp edges.

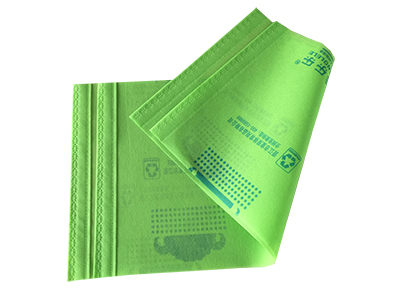

Type of bags made by this machine:




Main Technical Variables:




Type

ZXQ-A1200

Production Speed

20-140pcs/min

Cutting Width

300-1200m

Cutting Length

50-1200mm

Material Basis Weight

30-100g

Power Supply

380V-220V

Total Power

6KW

Overall Dimension(L*W*H)

4.3m*1.9m*1.5m

Weight

1200KG
